BABCOCK chain mercerizing line with 12 tanks

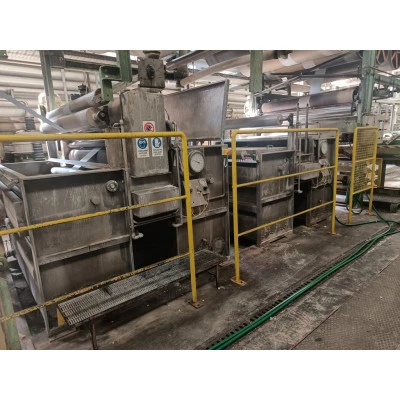

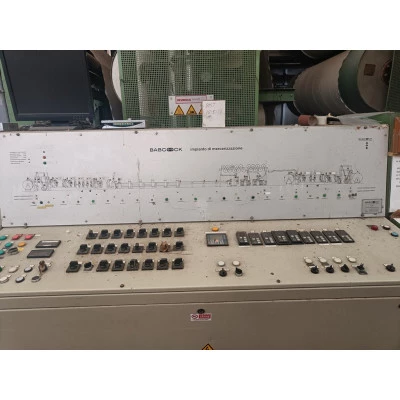

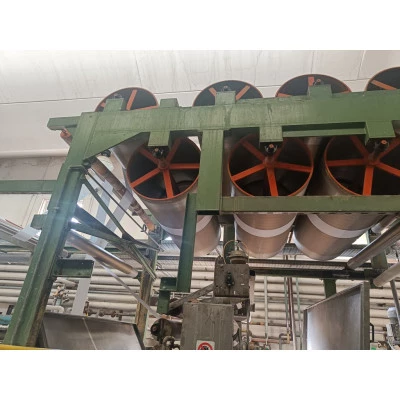

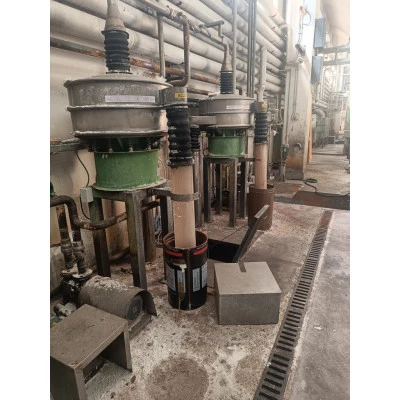

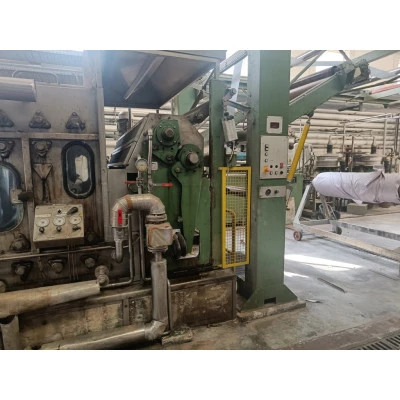

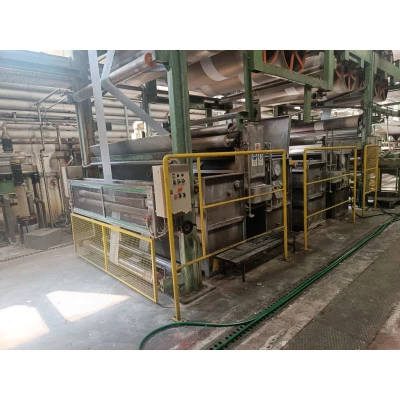

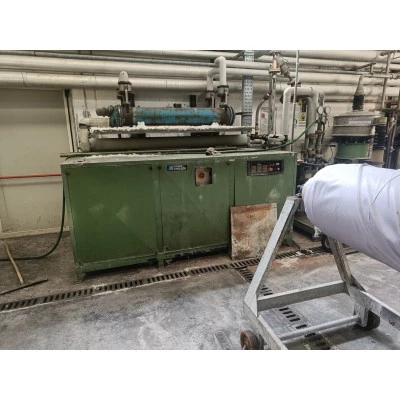

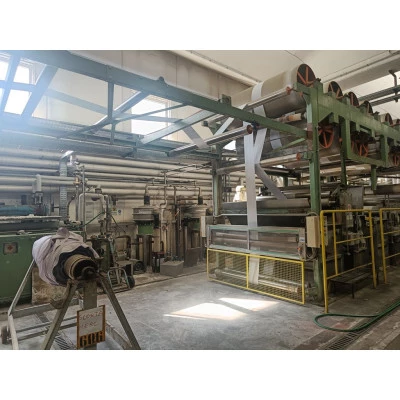

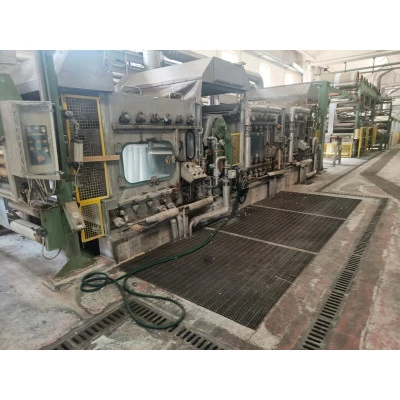

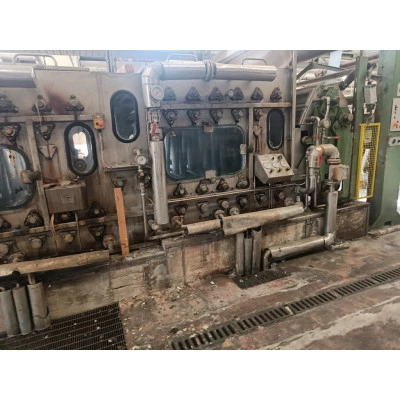

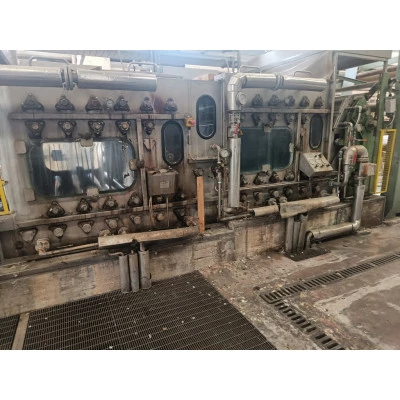

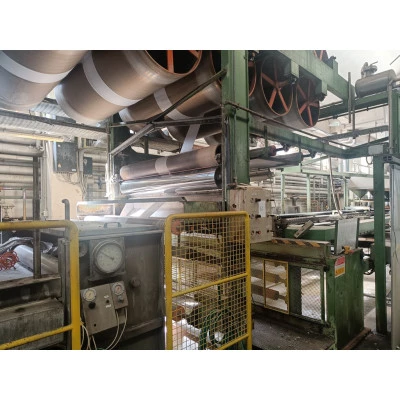

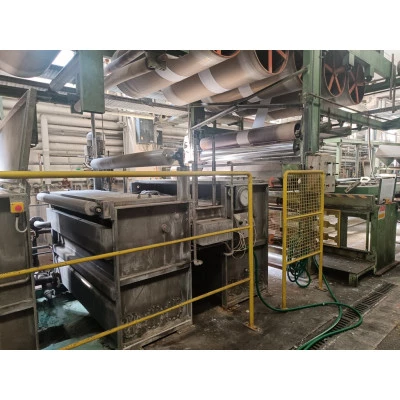

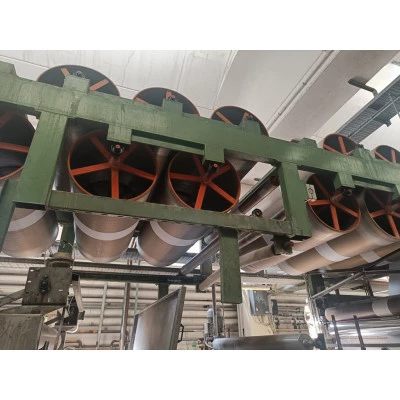

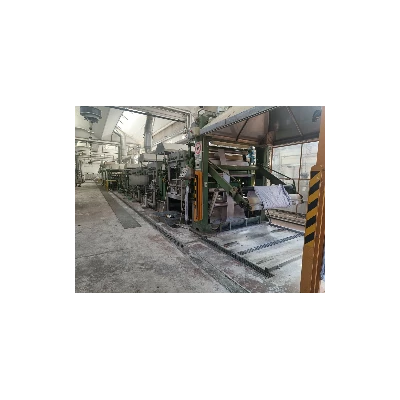

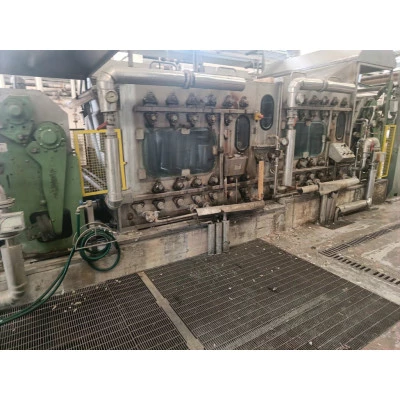

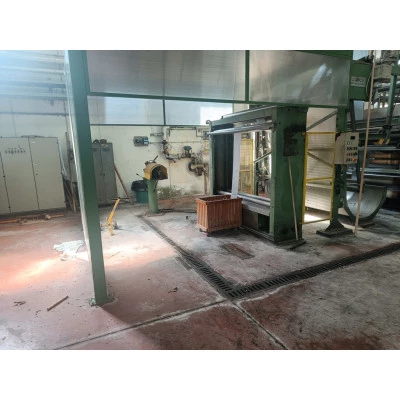

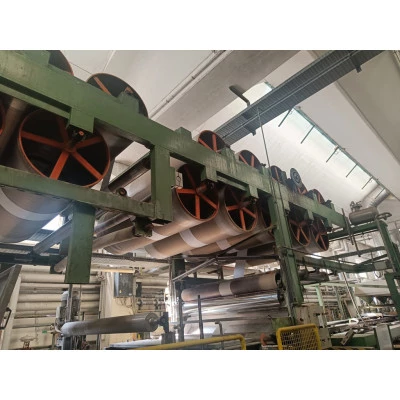

BABCOCK chain mercerizing line with 12 tanks year 1999 working width 1800 mm - Manufacturer of the washing tanks: BABCOCK - Manufacturer of the chain mercerizing line: COMERIO - Year of construction 1999 - Useful working width: 1800 mm. - Fabric entry from big roll with axial unwinding - Entry with J-box for fabric accumulation entry - N. 3 washing-preparation tanks for soda treatment, but they can also work as a simple independent washing unit - Overhead connection system between the washing line and the mercerizing line, with connection arms and passage cylinders - N. 4 impregnation tanks - N. 17 large diameter perforated cylinders for the oxidation of the fabric in air - N. 1 chain mercerizing unit, length 21 meters complete with alkaline showers for greater stabilization of the fabric - N. 5 washing and rinsing tanks, the last of which is equipped with an automatic chemical dosing system - Fabric exit in a big roll with tangential winding - Chiller - No. 2 filters to remove impurities from the soda, mainly fluff - Filter-press for the exhausted soda - Water system on board the machine - Steam system on board the machine - Electrical and pneumatic system on board the machine
